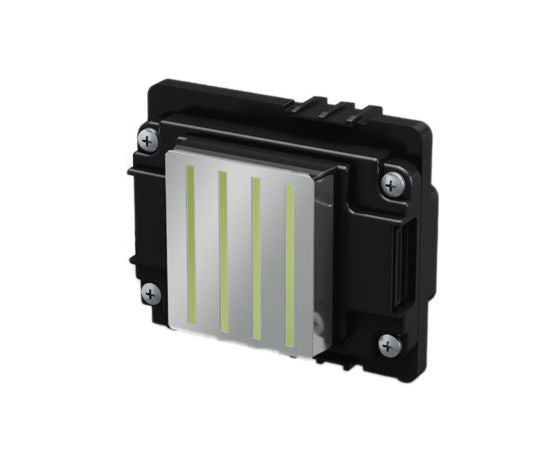

Epson I3200-A1 Water Printhead - I3200-A1

The Epson I3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks. The head included the manifold.

Warranty: due to the nature of DTF inks, we cannot accept returns, exchanges or refunds once the printhead has been installed. All sales are final.

Specifications :

• Ink Type : Aqueous
• Type : PrecisionCore MicroTFP printhead
• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight : 82g
• Number of nozzle : 3200
• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution : 300 noi/row 600 npi/2 rows
• Max. number of colour inks : 4 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :
  Binary : 6 plat 43.2 kHz
  3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
  4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz
• Viscosity range : 3-4 mPa·s
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
• Parts Code: FA32032 / FA32001 / C14F32032
